ATL's Racell Series is an FIA FT3 approved molded hard-rubber bladder that is crash resistant and deformable. It comes with 2 x #8 1/2" lower outlets, 1 x #8 1/2" return and 1 x #6 3/8" vent with check valve and foam baffling. The Racell series is compatible with All race fuels including Race Gas, Diesel, E15, E20, E85, E98 and Methanol and comes in 3 sizes.



ATL’s Super Cell Series come with a 5 year limited warranty. See table below for size variants.



Fuel Compatibility: All race fuels including Race Gas, Diesel, E15, E20, E85, E98 and Methanol.

THE BLADDER

The Bladder is a molded hard rubber crash resistant and deformable bladder. FIA FT3 approved.

THE FOAM BAFFLING

The SF103 Foam Baffling is designed for anti-slosh and explosion suppression. If you are using 100% Methanol, you will need to upgrade to the SF110 Safety Foam.

THE FILL CAP

The Fill Plate is an aluminium plate that features a billet aluminium cap with flap type roll over valve. AN6, AN8 or AN10 outlet. AN6 return, AN6 vent-valve roll-over valve and AN6 Dipstick.


Only with RA105-HP

THE FUEL PUMP

The CFD-104 is a high pressure fuel pump that comes only with RA105-HP. It is an in-tank EFI ready pump with 5/16" outlet. Compatible with Race Gas only, Max E15.

 MOUNTING BRACKETS
KS111 & KS112

Aluminium mounting brackets available to secure the Racell bladder. Available in KS111 for 3 Gal. bladder and KS112 for 5 Gal. bladder.

CAPACITIES & DIMENSIONS

Racell Series..JPG

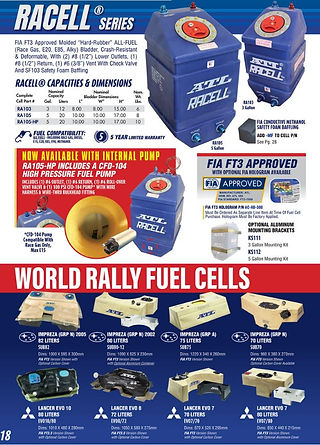

Racell Series catalogue image.JPG

RACELL STANDARD FEATURES

OPTIONAL UPGRADES

FOR MORE INFORMATION - SEE ATL'S CATALOGUE BELOW

RACELL SERIES
